Our Machine Capabilities

Turnkey CNC machining services for a variety of applications and industries. We solve the most complex challenges with top-tier precision and unparalleled passion.

Western Drilling Tools was founded as a machine shop, and machining is where we excel.

We deliver turnkey CNC machining services for a variety of applications and industries, including oil & gas, construction, water well, and mining, to name a few.
‍
At Western Drilling Tools, we provide precise, efficient and repeatable production runs -- turning unique ideas into physical parts. Our material list is long and comprehensive including everything from carbon steel, stainless steel, inconels, red metals, and plastics. Whether you need small or large parts manufactured, featuring simple or complex designs, our team of machinists and welders work diligently and to a high level of precision to ensure your custom project is a complete success.

Checkmark
40,000 ft² machine shop on 2.5 acres
A small gray check mark symbol on a transparent background.
Turning capabilities up to 14" casing, up to 50 feet long
A small gray check mark symbol on a transparent background.
10,000 lbs cranes
A small gray check mark symbol on a transparent background.
4 & 5 axis milling of complex and large parts

Machine Specifications

Okuma LB45 III Lathe

Okuma LB45 III Lathe

  • 10" spindle bore
  • 30" swing
  • 120" bed
  • Can turn up to 50 ft long pipe
Okuma LOC650 CNC Lathe

Okuma LOC650 CNC Lathe

  • 14.25" Spindle Bore
  • 35" Swing
  • 50" Bed
  • Can turn up to 50 ft. pipe
Okuma LB35II CNC Lathe (3 Machines)
3 Machines

Okuma LB35II CNC Lathe (3 Machines)

  • 7.125" Spindle Bore
  • 19" Swing
  • 59" Bed
  • Can turn up to 30 ft. pipe
Okuma Captain L470-125 CNC Lathe (2 Machines)
2 Machines

Okuma Captain L470-125 CNC Lathe (2 Machines)

  • 4" Spindle bore
  • 16" Swing
  • 49" Bed
Takisawa TC350 CNC Lathe

Takisawa TC350 CNC Lathe

  • 3.625" Spindle bore
  • 16" Swing
  • 20" Bed
L&L LA38x120 Manual Lathe

L&L LA38x120 Manual Lathe

  • 12" Spindle bore
  • 27" Swing
  • 10 ft. Bed
Modern DY680x2000g Manual Lathe

Modern DY680x2000g Manual Lathe

  • 6" Spindle Bore
  • 20" Swing
  • 7 ft. Bed

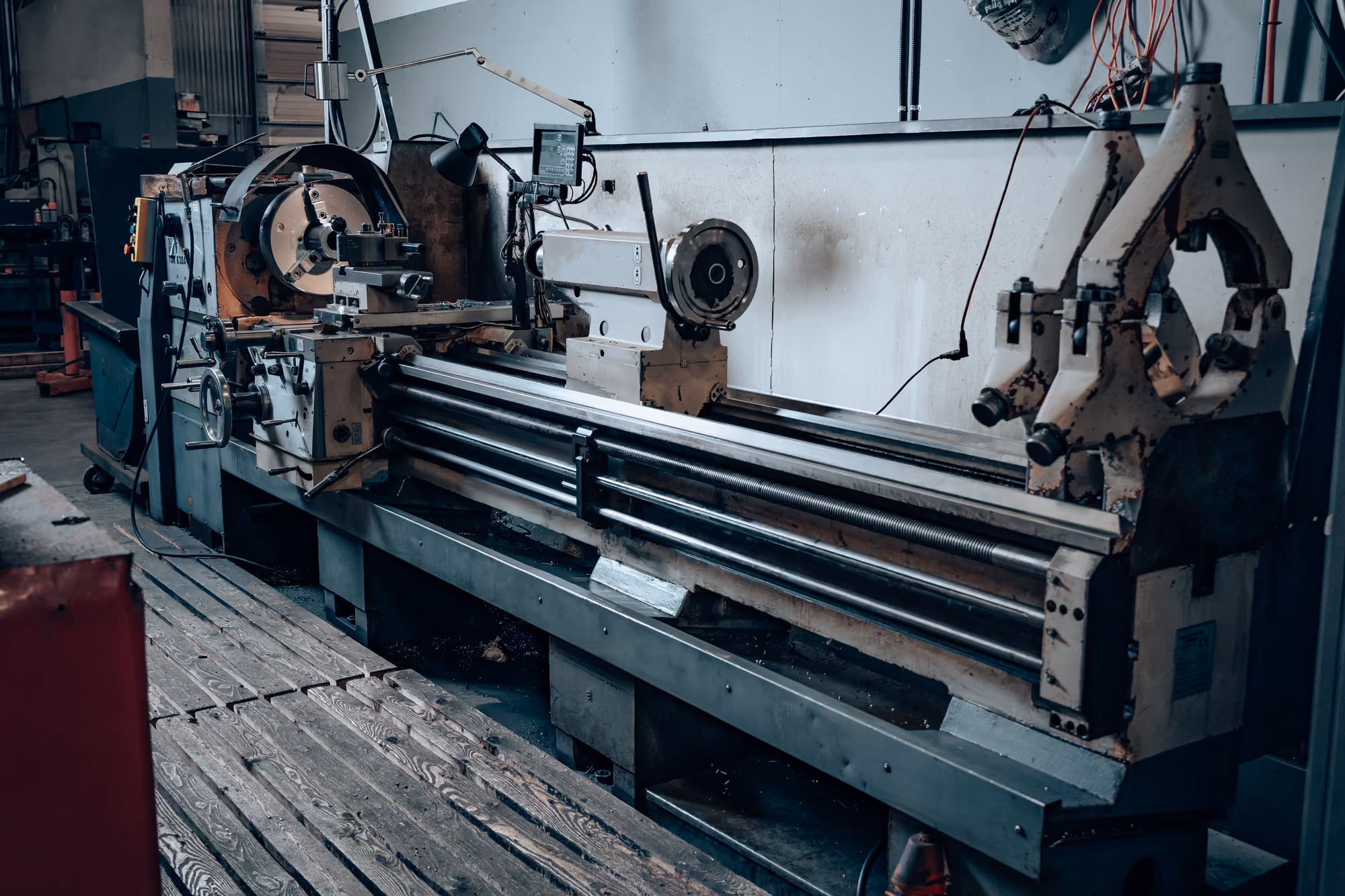

TUR 650A Manual Lathe

TUR 650A Manual Lathe

  • 5.5" Spindle Bore
  • 15" Swing
  • 12 ft. Bed

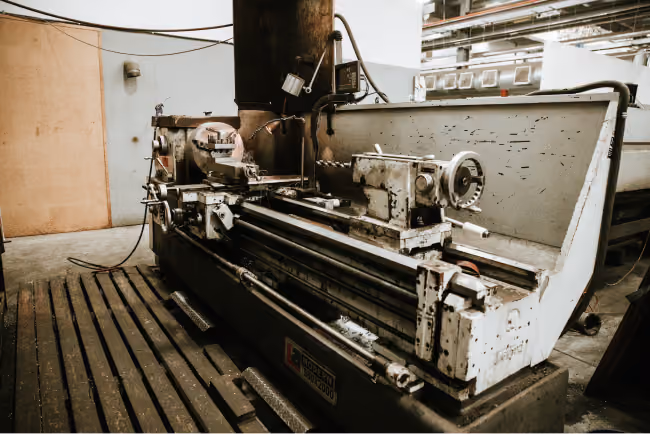

Modern LA560x2000 Manual Lathe

Modern LA560x2000 Manual Lathe

  • 4" Spindle Bore
  • 14" Swing
  • 8 ft. Bed
Eumach UMC 1000 5-axis CNC Mill

Eumach UMC 1000 5-axis CNC Mill

  • 5 Axis
  • 39" x 31" x 27" Travel
  • Rotary Table

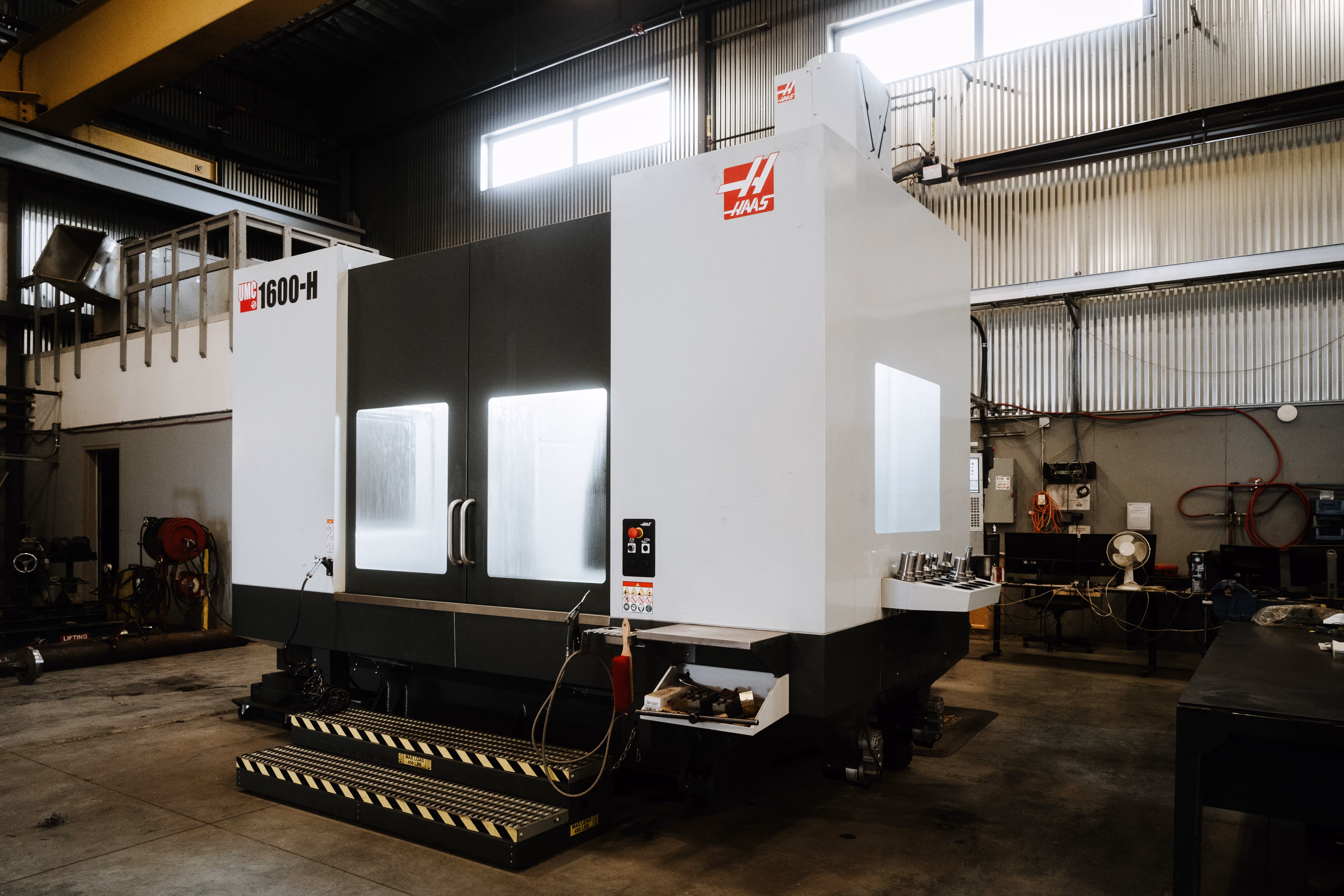

Haas 1600-H 5-Axis CNC Mill

Haas 1600-H 5-Axis CNC Mill

  • 5 Axis
  • Rotary table with Tombstone
  • 78" swing

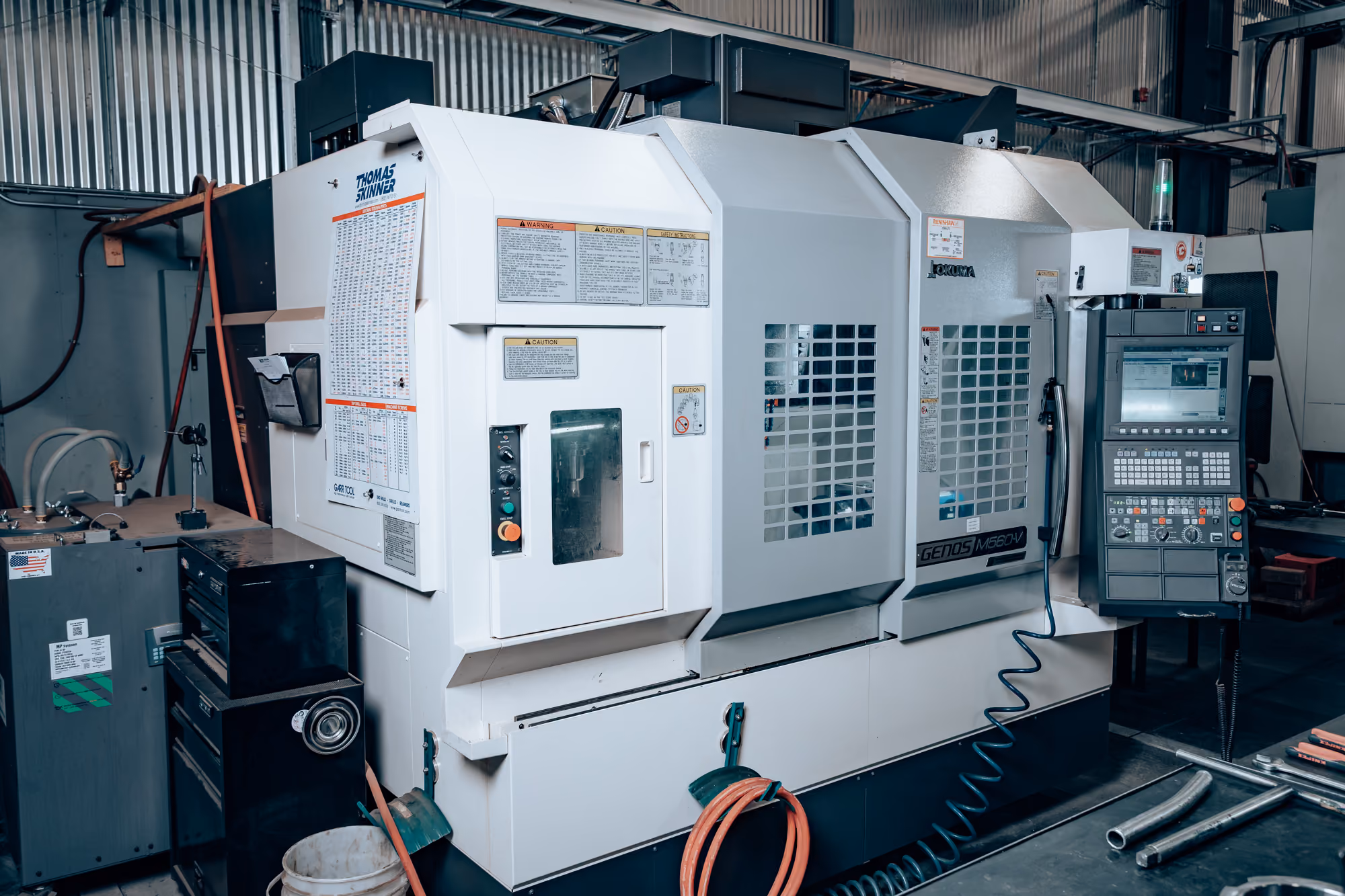

Okuma Genos M560-V

Okuma Genos M560-V

  • 4-Axis
  • 41" x 22" x 18" Travel
  • With Rotary Head
Daewoo ACE V85 CNC Mill

Daewoo ACE V85 CNC Mill

  • 4 Axis
  • 80" x 34" x 32" Travel
  • With Rotary Head

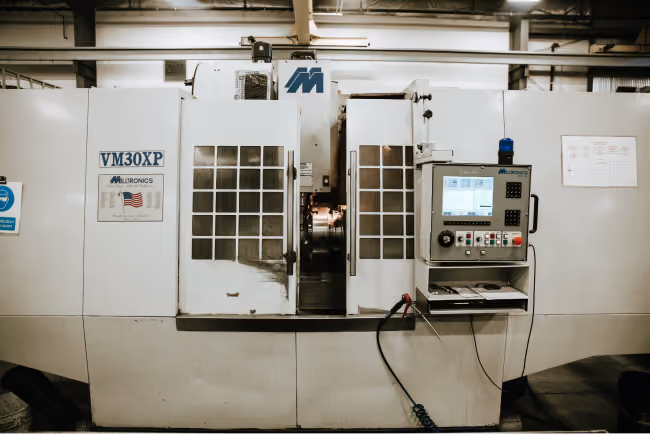

Milltronic VM30XP CNC Mill

Milltronic VM30XP CNC Mill

  • 4 Axis
  • 60" x 30" x 26" Travel
  • With Rotary head

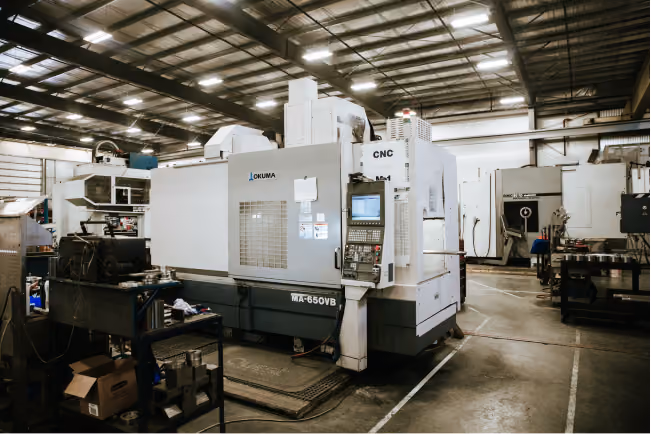

Okuma MA-650VB CNC Mill

Okuma MA-650VB CNC Mill

  • 4 Axis
  • 60" x 30" x 24" Travel
  • With Rotary Head

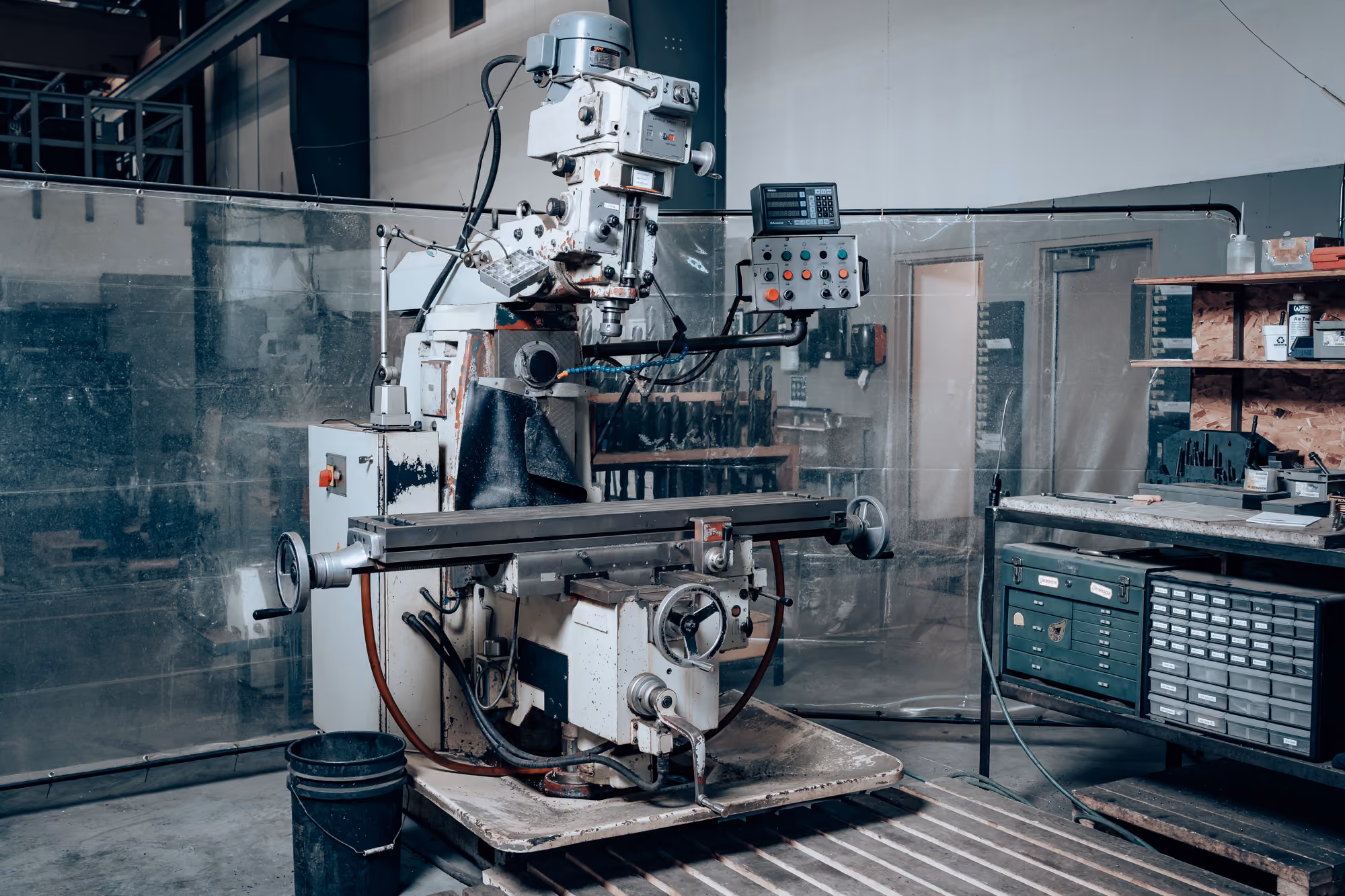

LC-20VHS Manual Mill

LC-20VHS Manual Mill

  • 4 Axis
  • 31.5" x 16" x 18" Travel

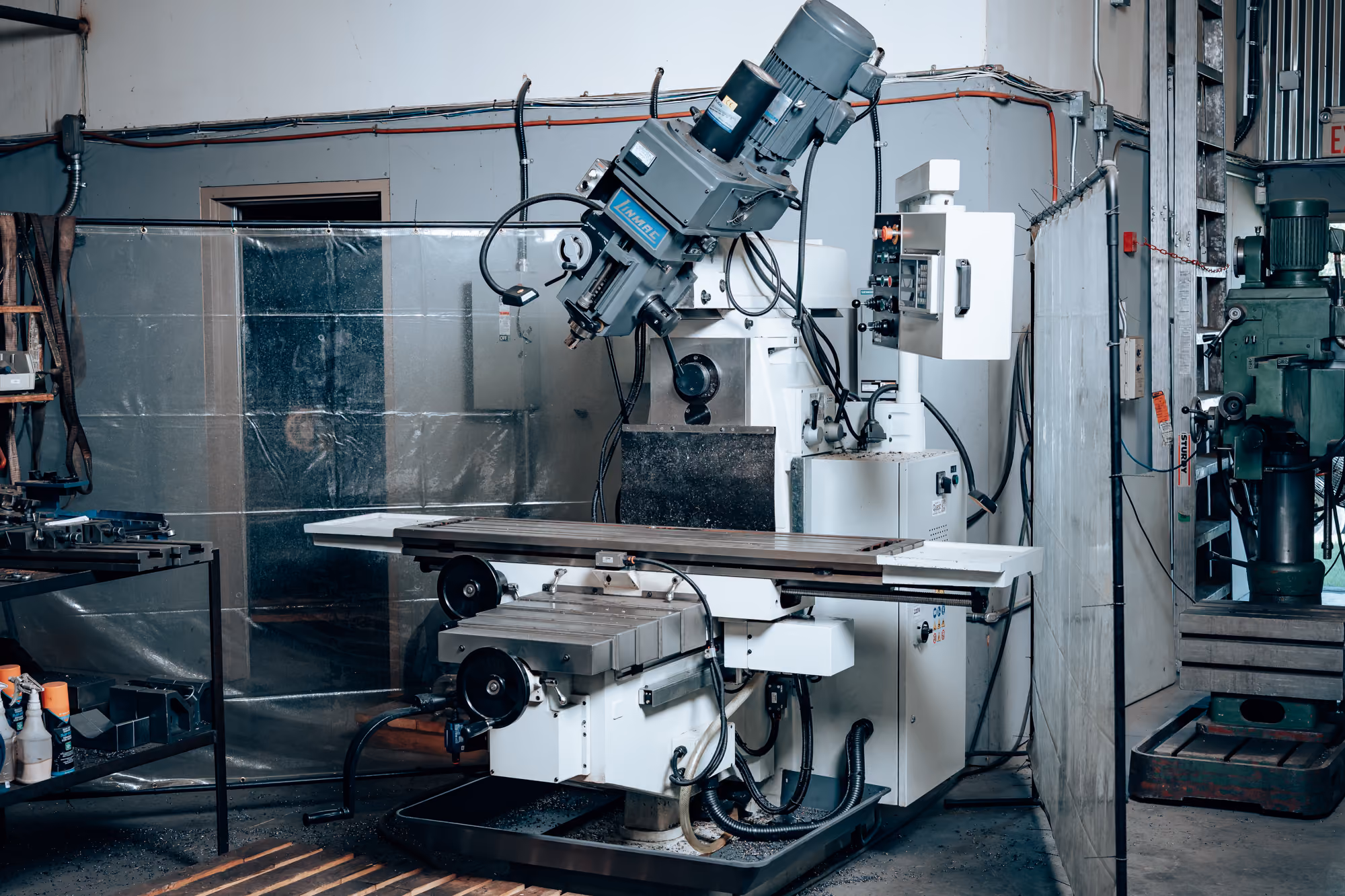

PBM-GEVS500A

PBM-GEVS500A

  • 4 Axis
  • 36" x 20" x 16" Travel"
Hyd-Mech T-25A Bandsaw

Hyd-Mech T-25A Bandsaw

  • 16" Maximum Cut Diameter

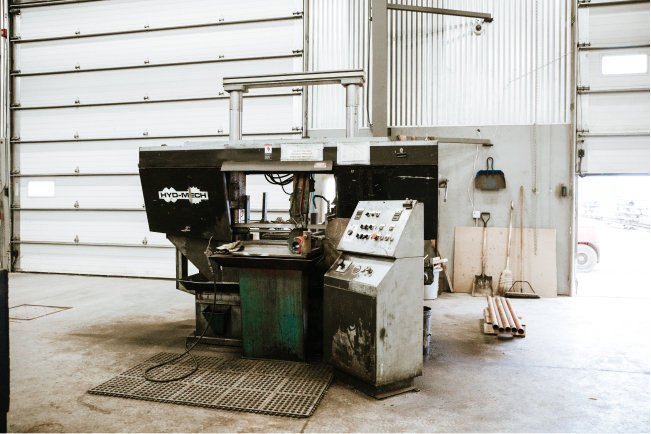

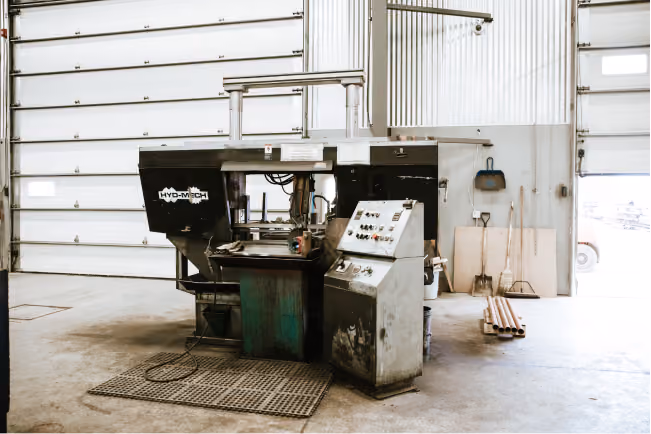

Hyd-Mech S-23A Bandsaw

Hyd-Mech S-23A Bandsaw

  • 20" Maximum Cut Diameter

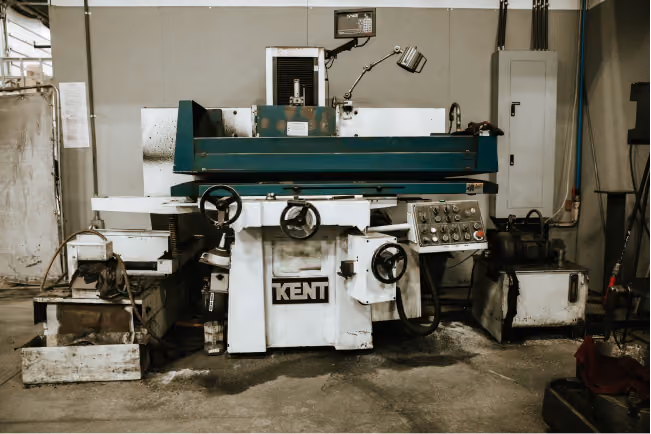

Kent KGS Surface Grinder

Kent KGS Surface Grinder

  • 20” x 10” Grinding Table

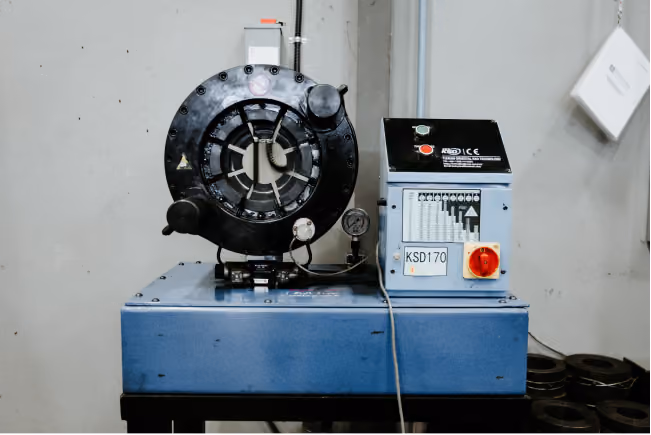

KSD 170 Crimper

KSD 170 Crimper

  • 6" Crimp Diameter Maximum

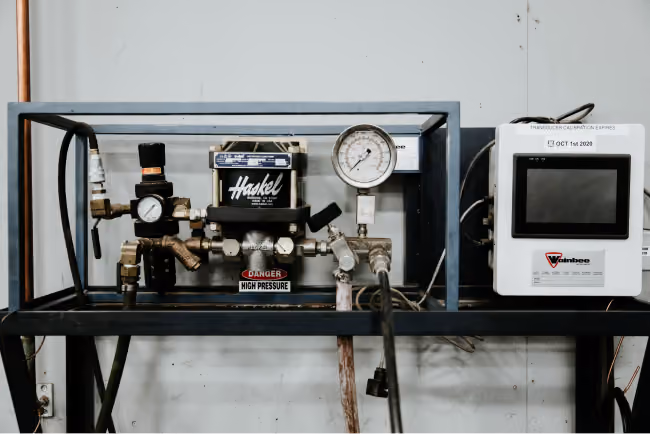

Wainbee/Haskel Pressure Tester

Wainbee/Haskel Pressure Tester

  • Up to 15,000 PSI
  • Digital Reporting

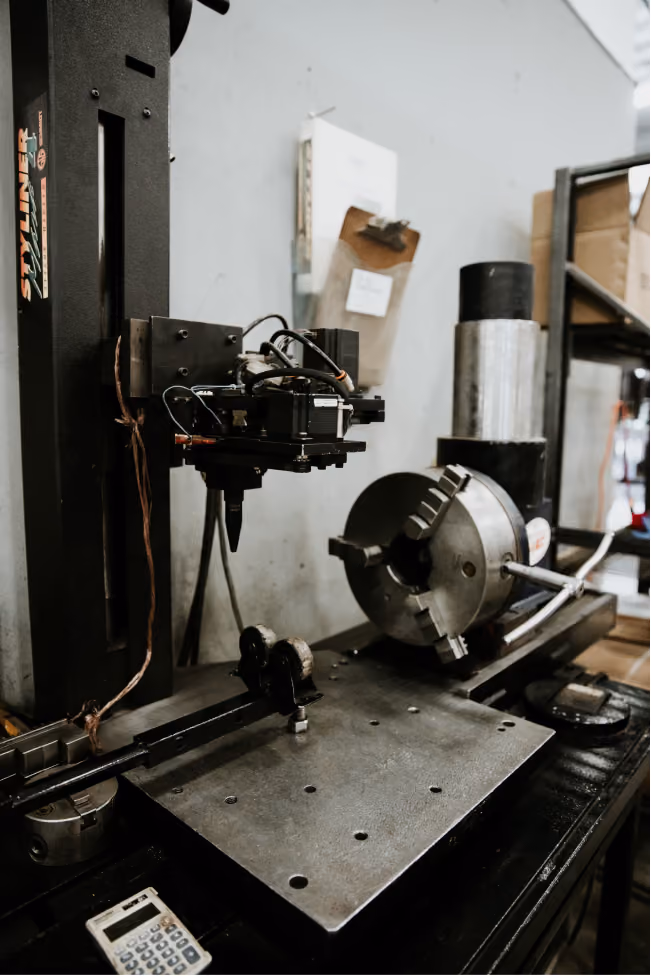

Styliner Mark 4 Engraver

Styliner Mark 4 Engraver

  • 4 Axis Rotary Head
  • Dot or Etch Engraving

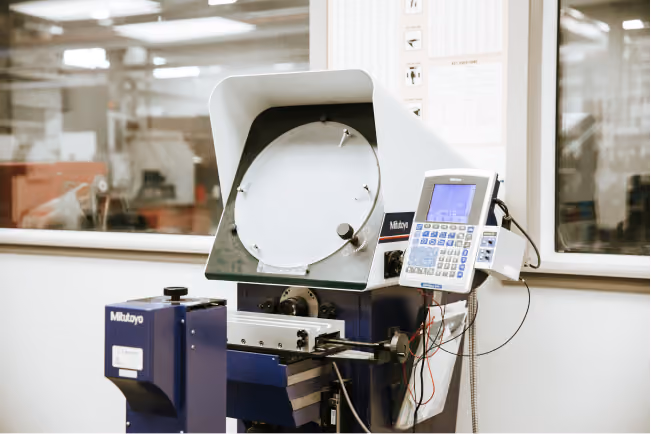

Optical Comparator

Optical Comparator

  • Digital Reporting accurate to 0.0001”

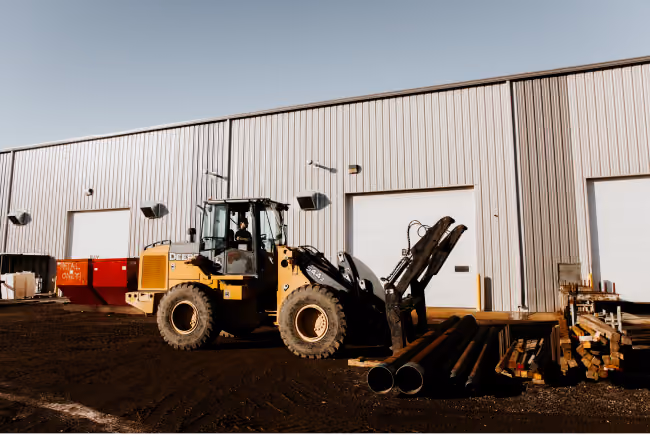

John Deere Payloader 544J

John Deere Payloader 544J

  • 15,000 lbs Lift
  • With Pipe Handler
Toyota 7FGU35 Forklift

Toyota 7FGU35 Forklift

  • 7,000 lbs Lift

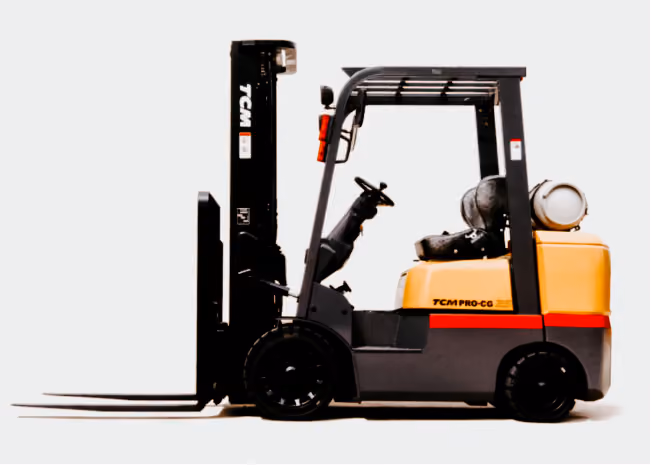

TCM Pro-HG30 Forklift

TCM Pro-HG30 Forklift

  • 5,000 lbs Lift
Okuma LB45 III Lathe

Okuma LB45 III Lathe

  • 10" spindle bore
  • 30" swing
  • 120" bed
  • Can turn up to 50 ft long pipe
Okuma LOC650 CNC Lathe

Okuma LOC650 CNC Lathe

  • 14.25" Spindle Bore
  • 35" Swing
  • 50" Bed
  • Can turn up to 50 ft. pipe
Okuma LB35II CNC Lathe (3 Machines)

Okuma LB35II CNC Lathe (3 Machines)

  • 7.125" Spindle Bore
  • 19" Swing
  • 59" Bed
  • Can turn up to 30 ft. pipe
Okuma Captain L470-125 CNC Lathe (2 Machines)

Okuma Captain L470-125 CNC Lathe (2 Machines)

  • 4" Spindle bore
  • 16" Swing
  • 49" Bed
Takisawa TC350 CNC Lathe

Takisawa TC350 CNC Lathe

  • 3.625" Spindle bore
  • 16" Swing
  • 20" Bed
L&L LA38x120 Manual Lathe

L&L LA38x120 Manual Lathe

  • 12" Spindle bore
  • 27" Swing
  • 10 ft. Bed
Modern DY680x2000g Manual Lathe

Modern DY680x2000g Manual Lathe

  • 6" Spindle Bore
  • 20" Swing
  • 7 ft. Bed
TUR 650A Manual Lathe

TUR 650A Manual Lathe

  • 5.5" Spindle Bore
  • 15" Swing
  • 12 ft. Bed
Modern LA560x2000 Manual Lathe

Modern LA560x2000 Manual Lathe

  • 4" Spindle Bore
  • 14" Swing
  • 8 ft. Bed
Eumach UMC 1000 5-axis CNC Mill

Eumach UMC 1000 5-axis CNC Mill

  • 5 Axis
  • 39" x 31" x 27" Travel
  • Rotary Table
Haas 1600-H 5-Axis CNC Mill

Haas 1600-H 5-Axis CNC Mill

  • 5 Axis
  • Rotary table with Tombstone
  • 78" swing
Okuma Genos M560-V

Okuma Genos M560-V

  • 4-Axis
  • 41" x 22" x 18" Travel
  • With Rotary Head
Daewoo ACE V85 CNC Mill

Daewoo ACE V85 CNC Mill

  • 4 Axis
  • 80" x 34" x 32" Travel
  • With Rotary Head
Milltronic VM30XP CNC Mill

Milltronic VM30XP CNC Mill

  • 4 Axis
  • 60" x 30" x 26" Travel
  • With Rotary head
Okuma MA-650VB CNC Mill

Okuma MA-650VB CNC Mill

  • 4 Axis
  • 60" x 30" x 24" Travel
  • With Rotary Head
LC-20VHS Manual Mill

LC-20VHS Manual Mill

  • 4 Axis
  • 31.5" x 16" x 18" Travel
Hyd-Mech T-25A Bandsaw

Hyd-Mech T-25A Bandsaw

  • 16" Maximum Cut Diameter
PBM-GEVS500A

PBM-GEVS500A

  • 4 Axis
  • 36" x 20" x 16" Travel"
Hyd-Mech S-23A Bandsaw

Hyd-Mech S-23A Bandsaw

  • 20" Maximum Cut Diameter
Kent KGS Surface Grinder

Kent KGS Surface Grinder

  • 20” x 10” Grinding Table
KSD 170 Crimper

KSD 170 Crimper

  • 6" Crimp Diameter Maximum
Wainbee/Haskel Pressure Tester

Wainbee/Haskel Pressure Tester

  • Up to 15,000 PSI
  • Digital Reporting
Styliner Mark 4 Engraver

Styliner Mark 4 Engraver

  • 4 Axis Rotary Head
  • Dot or Etch Engraving
Optical Comparator

Optical Comparator

  • Digital Reporting accurate to 0.0001”
John Deere Payloader 544J

John Deere Payloader 544J

  • 15,000 lbs Lift
  • With Pipe Handler
Toyota 7FGU35 Forklift

Toyota 7FGU35 Forklift

  • 7,000 lbs Lift
TCM Pro-HG30 Forklift

TCM Pro-HG30 Forklift

  • 5,000 lbs Lift

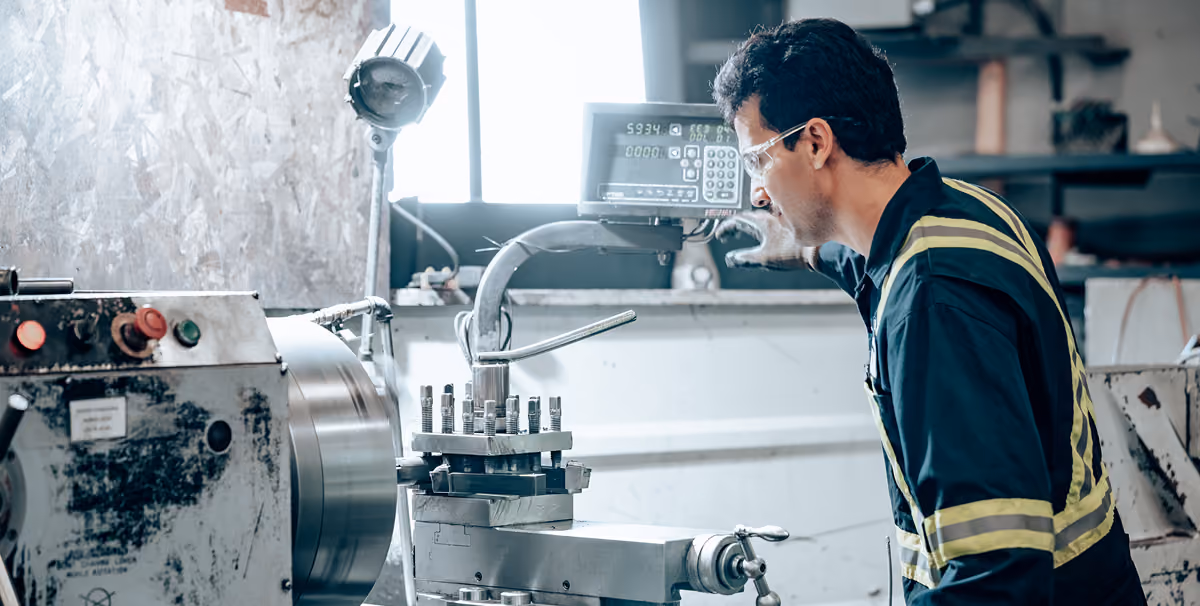

Man wearing safety glasses and a striped work shirt operating a metal lathe machine in an industrial workshop.

Machining Solutions Tailored to Your Needs

We can complete your design from start to finish - complex or simple, large or small. Our machining solutions can complete just one feature or a complete build, including any required treatments or coatings.
Our Services

Contact Us

Looking for more information on pricing, machine capabilities, or products? Contact us today.
